IVM Shuttle is a 3-row short mini-van that comes in two variants; Standard and Ambulance. It is designed to provide the ruggedness of an MPV whether as a cargo, passenger or ambulance variant.
7 or 11 Seater /1.25L/ 5 Speed Manual
The IVM 7 Seater bus is designed with passengers in mind as it offers a high sitting position and cargo space. It also offers excellent modern features like multimedia systems that would make your journey a memorable one.
Appearance
- Energy absorption bumper
- Five-spoke aluminium alloy rim
- Titanium silver steel wheel rim cover
- High strength steel wheel rim
- Crystal headlamp (with 5-level electric regulation)
- Direct-pull door handle
- Highlight chrome plated trim strip at the trail
- Black firm trim of B/C column for business
- Crystal rearview mirrow (12 efficient LED side turn signal lamps with low consumption)
- Front fog lamp with high penetrability
- Combination tail lamp (including two backup lamps and rear fog lamps
- High mounted brake lamp (5 highlight lamps)
- Theft- deterrent steering lock system
- Collapsible steering column
- Theft- deterrent alarm
- Seat belt
Comfortable system
- EPS- electric power steering

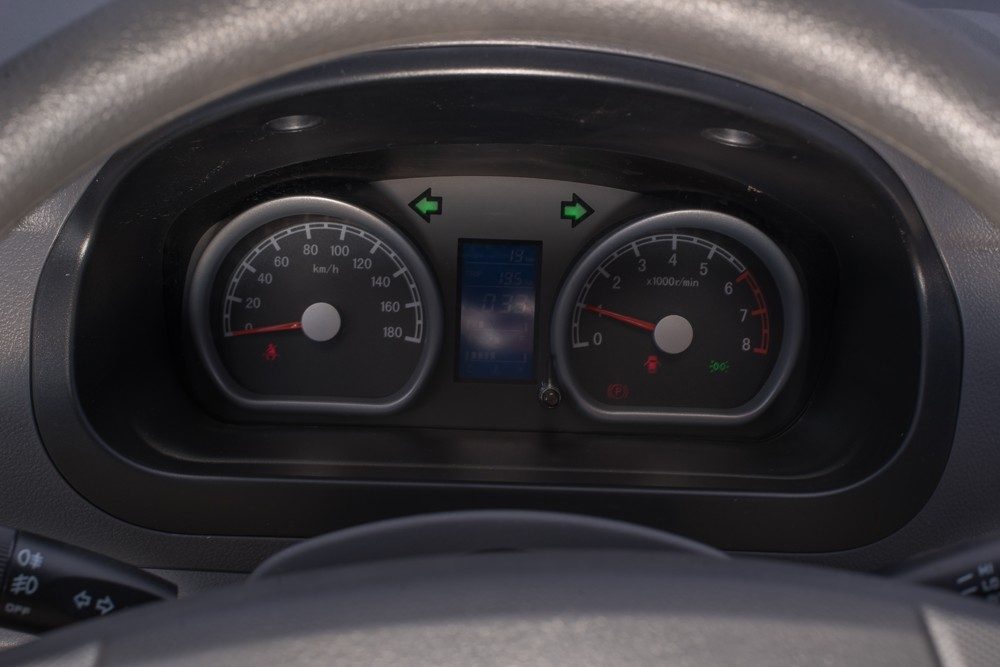

- Anti-dazzle double-barrel instrument in bright silver
- Efficient vehicle-mounted front/rear A/C system
- Electric window of front door
- Driver/front passenger sun visor (with bill fold and make-up mirror)

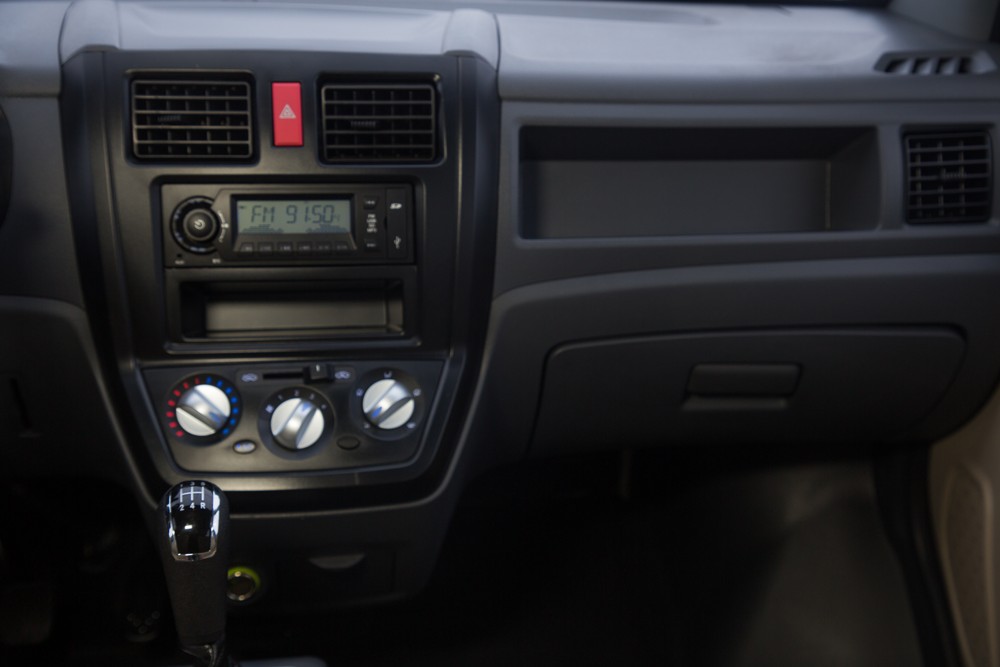

- Electric EQ stereo (radio +Auxin+USB+MP3
- Manual rear view mirror,
- Remote control lock,
- Fully air conditional with rear vents,
- Multimedia system and leather seat
Trim and Seat
- Luxurious trim

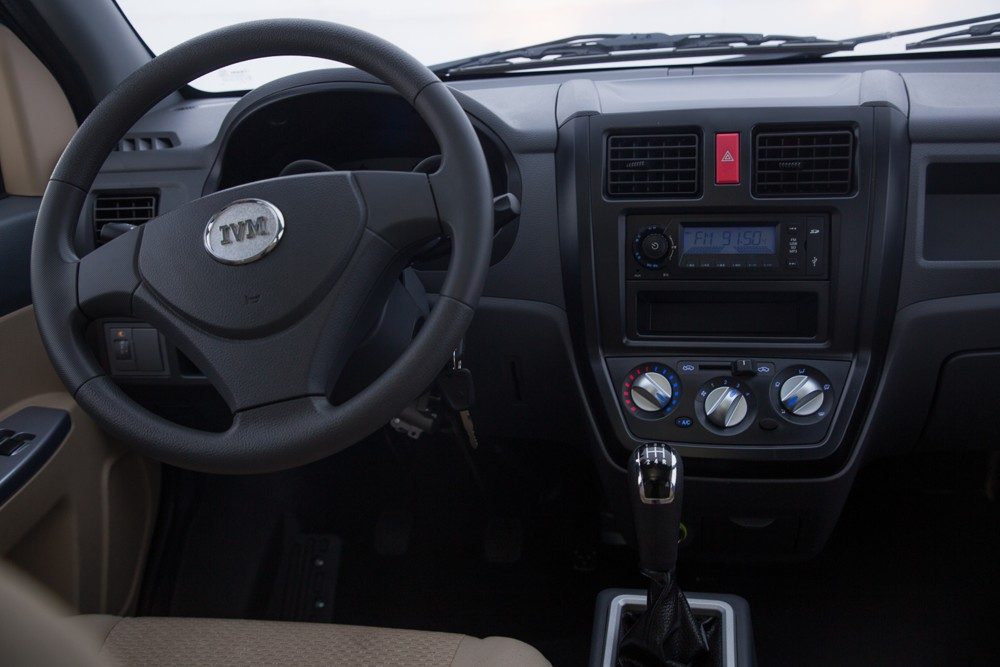

- Four-spoke composite pattern steering wheel
- Front armrest trim plate in bright silver
Chassis System
- Front/Rear Suspension- Macpherson Independent Suspension/ Leaf Spring Integrated Suspension (5 steel leaves)
- Braking Type – Front disc and rear drum, double-loop hydraulic, vacuum servo
- Tyre model- 175/70 R14 LT
- ABS
Engine SPECIFICATIONS
- Engine – 1.25L Petrol Engine
- Displacement (ml)- 1249
- Rated Power- (km/rpm)- 67/6000
- Maximum Torgue- (N.m/rpm)- 118/4000
- Fuel – Gasoline
- Transmission – 5MT
Basic Parameters
- Weight- (Curb weight- kg)- 1180
- Gross Weight (kg)- 1850
- Overall Length (mm) 4071
- Overall width (mm) 1677
- overall height (mm) 1902
- Model name – Innoson 5380
seats- 7 and 10
- Design
-
The IVM 7 Seater bus is designed with passengers in mind as it offers a high sitting position and cargo space. It also offers excellent modern features like multimedia systems that would make your journey a memorable one.
Appearance
- Energy absorption bumper
- Five-spoke aluminium alloy rim
- Titanium silver steel wheel rim cover
- High strength steel wheel rim
- Crystal headlamp (with 5-level electric regulation)
- Direct-pull door handle
- Highlight chrome plated trim strip at the trail
- Black firm trim of B/C column for business
- Crystal rearview mirrow (12 efficient LED side turn signal lamps with low consumption)
- Front fog lamp with high penetrability
- Combination tail lamp (including two backup lamps and rear fog lamps
- High mounted brake lamp (5 highlight lamps)
- Theft- deterrent steering lock system
- Collapsible steering column
- Theft- deterrent alarm
- Seat belt
- Technology
-
Comfortable system
- EPS- electric power steering
- Anti-dazzle double-barrel instrument in bright silver
- Efficient vehicle-mounted front/rear A/C system
- Electric window of front door
- Driver/front passenger sun visor (with bill fold and make-up mirror)
- Electric EQ stereo (radio +Auxin+USB+MP3
- Manual rear view mirror,
- Remote control lock,
- Fully air conditional with rear vents,
- Multimedia system and leather seat
Trim and Seat
- Luxurious trim
- Four-spoke composite pattern steering wheel
- Front armrest trim plate in bright silver
Chassis System
- Front/Rear Suspension- Macpherson Independent Suspension/ Leaf Spring Integrated Suspension (5 steel leaves)
- Braking Type – Front disc and rear drum, double-loop hydraulic, vacuum servo
- Tyre model- 175/70 R14 LT
- ABS
- Specifications
-
Engine SPECIFICATIONS
- Engine – 1.25L Petrol Engine
- Displacement (ml)- 1249
- Rated Power- (km/rpm)- 67/6000
- Maximum Torgue- (N.m/rpm)- 118/4000
- Fuel – Gasoline
- Transmission – 5MT
Basic Parameters
- Weight- (Curb weight- kg)- 1180
- Gross Weight (kg)- 1850
- Overall Length (mm) 4071
- Overall width (mm) 1677
- overall height (mm) 1902
- Model name – Innoson 5380
seats- 7 and 10
